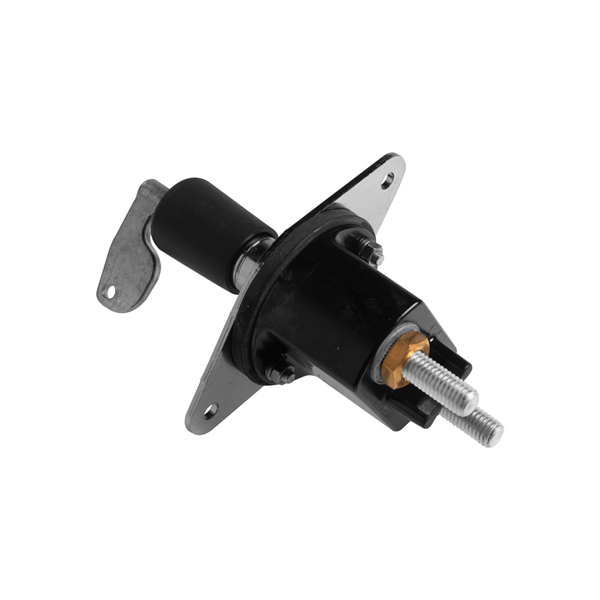

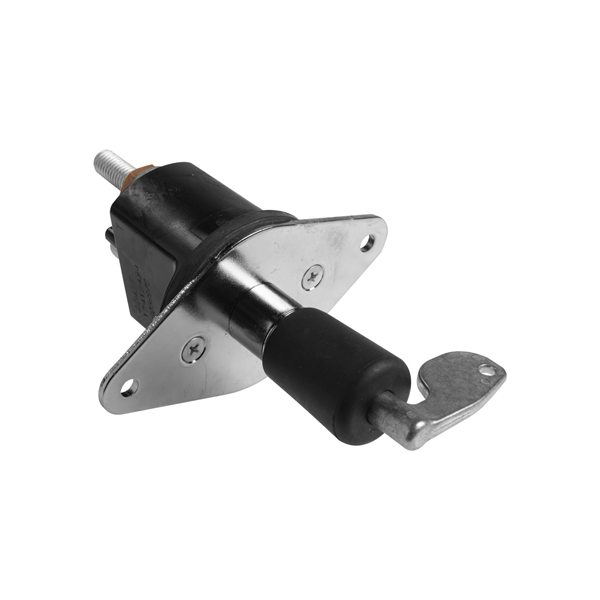

VOE 3987034 – Main Switch VMP

Key Features

$24,00

Delivery Options

Worldwide delivery — estimated arrival in 1 business day.

Warranty Information

All VMP products include a standard 6-month warranty.

6 MONTHS

Product Description

Description

The VOE 3987034 Main Switch VMP is a Volvo construction equipment spare part. A switch opens or closes electrical circuits to control machine functions.

This part is categorized under Electrical System, Warning System, Information System, Instruments, Battery and Cable, Fuse, Relay applications.

Volvo Off Road
A20, A20C, A25, A25B, A25C, A25D, A25E, A30C, A30D, A30E, A35, A35C, A35D, A35E, A40, A40D, A40E, T450D, L50, L50D, L50E, L60E, L60F, L70, L70D, L70E, L70F, L90, L90B, L90C, L90D, L90E, L90F, L110E, L120, L120B, L120C, L120D, L120E, L120F, L150, L150C, L150D, L150E, L150F, L150G, L160, L180, L180C, L180D, L180E, L180F, L180G, L220D, L220E, L220F
L220G, L330C, L330D, L330E, L350F
Reference Number:
  • 17418494
  • 8151943
  • 3987034
  • 240315
  • 1587698
  • 4803667
  • MS-034

Genuine Volvo quality switch. Current capacity (with cables size 70 mm2):
• 300 A continuosly.
• 800 A for 30 seconds (short circuit).
• 2500 A for 5 seconds.
• Protecting degree with handled assembled: IP 67 (CEI EN 60529-1992) (ISO 8846 RINA)and IP X9K

Additional information
Weight 0,5 kg
Volvo Referans No

3987034, 8151943, 240315, 1587698, 4803667

Brands

VMP

Compatible Machines
