VOE 11034888 – Planetary Gear Shaft
Key Features
$95,64
Warranty Information
All VMP products include a standard 6-month warranty.
6 MONTHS
Product Description
Description

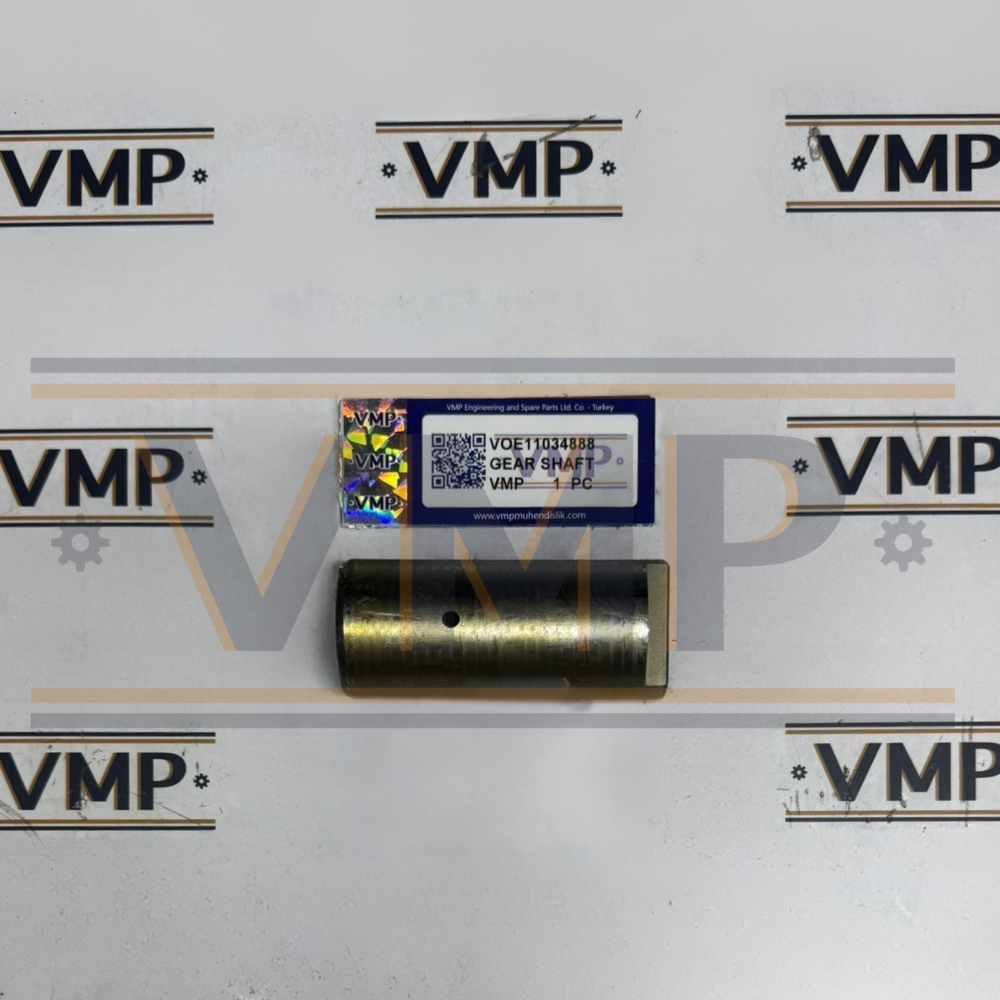

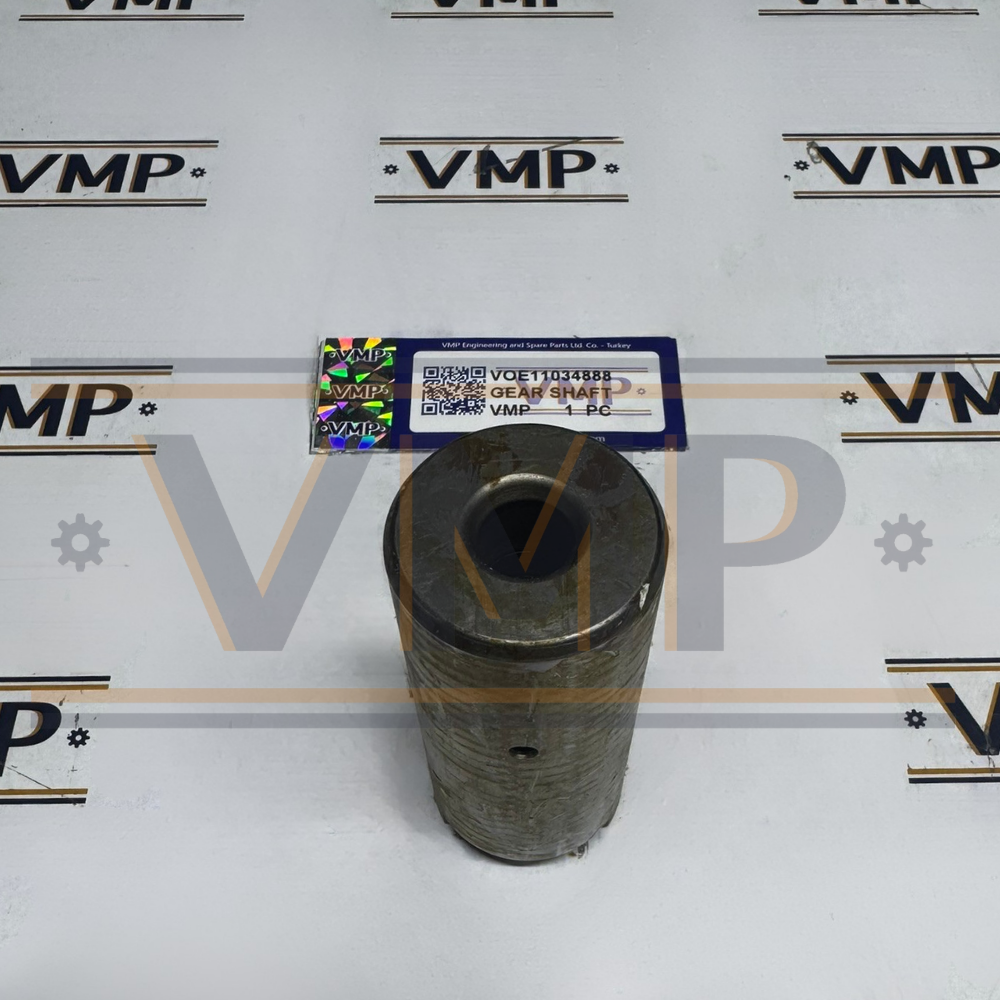

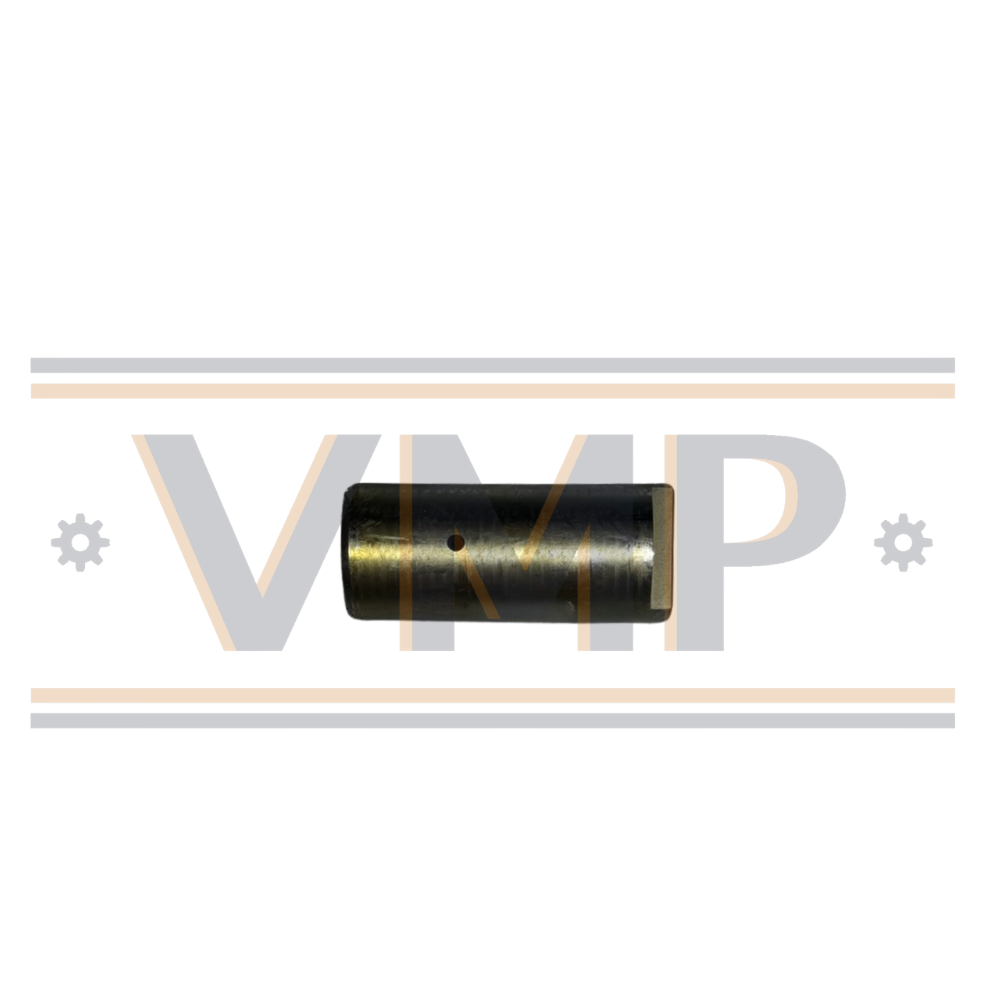

The VOE 11034888 Planetary Gear Shaft is a Volvo construction equipment spare part. A gear transmits rotational motion and torque between shafts in the machine drivetrain.
This part is categorized under Front Axle, Rear Axle applications. It is commonly installed on Volvo Articulated Haulers and Volvo Wheel Loaders to ensure reliable system performance and operational safety.
VOE 11034888 replaces previous part number VOE4870216. If your machine was originally equipped with VOE4870216, this is the updated replacement part.
| Model | SN | Old Part |
|---|---|---|
| L90B Volvo | 11100-13000,61101-61900, | VOE4870216 |
| A25D Volvo | 13001-16369,72001-72433, | |
| A25D 4×4 Volvo | 72001-72433,13034-16369, | |
| L90 CO Volvo | 40301-50000,7401-11008,60001-61100, | VOE4870216 |
| L90 Volvo | 7401-11008,60001-61100,40301-50000, | VOE4870216 |
| A20 Volvo | 1001-3000, | VOE4870216 |
| A20 6×4 Volvo | 1001-3000, | VOE4870216 |
| A25B 4×4 Volvo | 7001-7900,60001-68100, | VOE4870216 |
| A25B Volvo | 7001-7900,60001-68100, | VOE4870216 |
| A25C 4×4 Volvo | 68100-70000,7977-10256, | VOE4870216 |
| A25C Volvo | 7901-10256,70100-70600,60201-70000, | VOE4870216 |
| A20C Volvo | 3001-3051, | |
| A20C Volvo | 3052-5000, | |
| L120 Volvo | 5000-9000,50000-70000, | VOE4870216 |
| A25C 4×4 Volvo | 68100-70000,7977-10256, | VOE4870216 |
| A25C Volvo | 7901-10256,70100-70600,60201-70000, | VOE4870216 |
| A20 Volvo | 1001-3000, | VOE4870216 |
| A20 6×4 Volvo | 1001-3000, | VOE4870216 |
| A25E Volvo | 73001-73300,13001-13939, | |
| A25E 4×4 Volvo | 73001-,13001-, | |
| A25E Volvo | 73001-73300,13001-13939, | |
| A25E 4×4 Volvo | 73001-,13001-, | |
| A25E Volvo | 73001-73300,13001-13939, | |
| A25E 4×4 Volvo | 73001-,13001-, | |
| A25 6×4 Volvo | 4001-7000, | VOE4870216 |
| A25 4×4 Volvo | 4001-7000, | VOE4870216 |
| A25 Volvo | 4001-7000, | VOE4870216 |
| L120B Volvo | 8100-10000,60750-63000, | |
| 5350B Volvo | 1-99999, | VOE4870216 |
| 5350B 6×4 Volvo | 1-99999, | VOE4870216 |
| 5350B 4×4 Volvo | 1-99999, | VOE4870216 |
| L90 CO Volvo | 40301-50000,7401-11008,60001-61100, | VOE4870216 |
| L90 Volvo | 7401-11008,60001-61100,40301-50000, | VOE4870216 |
| L90 CO Volvo | 40301-50000,7401-11008,60001-61100, | VOE4870216 |
| L90 Volvo | 7401-11008,60001-61100,40301-50000, | VOE4870216 |
| A25C Volvo | 10257-13600,60912-70158,70159-70600, | |
| A25C 4×4 Volvo | 10257-13600,68146-70600, | |
| A25B 4×4 Volvo | 7001-7900,60001-68100, | |
| A25B Volvo | 7001-7900,60001-68100, | |
| A20 Volvo | 1001-3000, | VOE4870216 |
| A20 6×4 Volvo | 1001-3000, | VOE4870216 |
| A25C Volvo | 10257-13600,60912-70158,70159-70600, | VOE4870216 |
| A25C 4×4 Volvo | 10257-13600,68146-70600, | VOE4870216 |
| A20 Volvo | 1001-3000, | VOE4870216 |
| A20 6×4 Volvo | 1001-3000, | VOE4870216 |
| 5350B Volvo | 1-99999, | VOE4870216 |
| 5350B 6×4 Volvo | 1-99999, | VOE4870216 |
| 5350B 4×4 Volvo | 1-99999, | VOE4870216 |
| A20 Volvo | 1001-3000, | VOE4870216 |
| A20 6×4 Volvo | 1001-3000, | VOE4870216 |
| A25 6×4 Volvo | 4001-7000, | VOE4870216 |
| A25 4×4 Volvo | 4001-7000, | VOE4870216 |
| A25 Volvo | 4001-7000, | VOE4870216 |
| A20 Volvo | 1001-3000, | VOE4870216 |
| A20 6×4 Volvo | 1001-3000, | VOE4870216 |
| A25B 4×4 Volvo | 7001-7900,60001-68100, | VOE4870216 |
| A25B Volvo | 7001-7900,60001-68100, | VOE4870216 |
| A25D Volvo | 71001-71999,11001-12999,61001-61118, | |
| A25D 4×4 Volvo | 11560-12999, | |
| L90B Volvo | 11100-13000,61101-61900, | |
| A25C 4×4 Volvo | 68100-70000,7977-10256, | |
| A25C Volvo | 7901-10256,70100-70600,60201-70000, | |
| A25D Volvo | 71001-71999,11001-12999,61001-61118, | |
| A25D 4×4 Volvo | 11560-12999, | |
| A25D Volvo | 71001-71999,11001-12999,61001-61118, | |
| A25D 4×4 Volvo | 11560-12999, | |
| A20 Volvo | 1001-3000, | VOE4870216 |
| A20 6×4 Volvo | 1001-3000, | VOE4870216 |
| A25 6×4 Volvo | 4001-7000, | VOE4870216 |
| A25 4×4 Volvo | 4001-7000, | VOE4870216 |
| A25 Volvo | 4001-7000, | VOE4870216 |
| A25 6×4 Volvo | 4001-7000, | VOE4870216 |
| A25 4×4 Volvo | 4001-7000, | VOE4870216 |
| A25 Volvo | 4001-7000, | VOE4870216 |
| A20C Volvo | 3001-3051, | |
| A20C Volvo | 3001-3051, | |
| A20C Volvo | 3052-5000, | |
| A20C Volvo | 3052-5000, | |
| A25D Volvo | 13001-16369,72001-72433, | |
| A25D 4×4 Volvo | 72001-72433,13034-16369, | |
| A25D Volvo | 13001-16369,72001-72433, | |
| A25D 4×4 Volvo | 72001-72433,13034-16369, | |
| A25C Volvo | 10257-13600,60912-70158,70159-70600, | VOE4870216 |
| A25C 4×4 Volvo | 10257-13600,68146-70600, | VOE4870216 |
| A25G Volvo | 342001-,322001-,722001-,742001-,732001-,752001-,352001-, | |
| A25G Volvo | 342001-,322001-,722001-,742001-,732001-,752001-,352001-, | |
| A25F Volvo | 720001-,320001-, | |
| A25G Volvo | 740001-,340001-, | |
| A25G Volvo | 342001-,322001-,722001-,742001-,732001-,752001-,352001-, | |
| A25G Volvo | 342001-,322001-,722001-,742001-,732001-,752001-,352001-, | |
| A25F Volvo | 720001-,320001-, | |
| A25G Volvo | 740001-,340001-, | |
| A25F Volvo | 720001-,320001-, | |
| A25G Volvo | 740001-,340001-, | |
| A25G Volvo | 342001-,322001-,722001-,742001-,732001-,752001-,352001-, | |
| A25F Volvo | 720001-,320001-, | |
| A25G Volvo | 740001-,340001-, | |
| A25F Volvo | 73401-,53001-,13001-, | |
| A25F Volvo | 73401-,53001-,13001-, | |
| A25F Volvo | 720001-,320001-, | |
| A25G Volvo | 740001-,340001-, | |
| A25F Volvo | 720001-,320001-, | |
| A25G Volvo | 740001-,340001-, | |
| A25G Volvo | 342001-,322001-,722001-,742001-,732001-,752001-,352001-, | |
| A25F Volvo | 73401-,53001-,13001-, |
Additional information
| Weight | 0,928 kg |
|---|
