VOE 14547395 – Bronze Bushing
Key Features
$269,27
Warranty Information
All VMP products include a standard 6-month warranty.
6 MONTHS
Product Description
Description

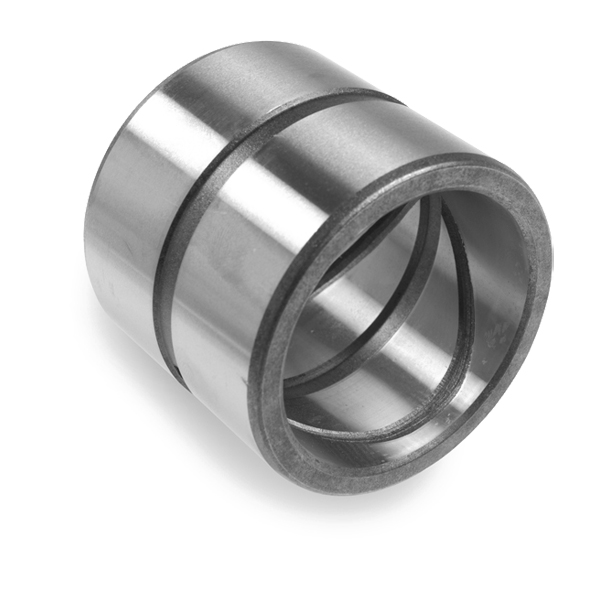

The VOE 14547395 Bushing is a Volvo construction equipment spare part. A bushing is a cylindrical sleeve that provides a low-friction bearing surface between a pin and its bore in boom, arm, bucket and linkage pivot joints, reducing wear and absorbing impact loads.
This part is categorized under Unit, Digging applications. It is commonly installed on Volvo Excavators and Volvo Wheel Loaders to ensure reliable system performance and operational safety.
VOE 14547395 replaces previous part number VOE14513634. If your machine was originally equipped with VOE14513634, this is the updated replacement part.
| Model | SN | Old Part |
|---|---|---|
| EW140C Volvo | 120012-121366, | |
| EW160E Volvo | 320011-321395,322001-323000,323001-, | |
| EWR150E Volvo | 320011-321068,322001-323000,323001-, | |
| EW140D Volvo | 220014-, | |
| EW160D Volvo | 220014-221107, | |
| EWR150E Volvo | 320011-321068,322001-323000,323001-, | |
| EW160E Volvo | 320011-321395,322001-323000,323001-, | |
| EWR170E Volvo | 320011-323000,323001-, | |
| EWR170E Volvo | 320011-323000,323001-, | |
| EC300E NL Volvo | 310001-314000,314001-, | |
| EC300E L Volvo | 314001-,310001-314000, | |
| EC300E NLD Volvo | 310001-314000,314001-, | |
| EC300E LD Volvo | 310001-314000,314001-, | |
| EC300E LR Volvo | 314001-,310001-314000, | |
| EW145B Volvo | 15001-, | |
| EC210D Volvo | 280001-,250001-,230001-,240001-, | |
| EC210D Volvo | 230001-,280001-,250001-,240001-, | |
| EC210D Volvo | 230001-,250001-,280001-,240001-, | |
| EC120D Volvo | 230001-, | |
| EW145B Volvo | 10001-15000, | VOE14513634 |
| EC140C LM Volvo | 110001-111312, | |
| EC140C L Volvo | 110001-111312, | |
| ECR145E Volvo | 314001-,310001-314000, | |
| EC140D L Volvo | 210001-211217,230001-,270001-,240001-,280001-, | |
| EC140D LM Volvo | 280001-,210001-211217,270001-,240001-,230001-, | |
| EW145B Volvo | 15001-, | VOE14513634 |
| EC140E Volvo | 310001-314000,314001-, | |
| EC140E Volvo | 314001-,310001-314000, | |
| EW140E Volvo | 314001-,310001-314000, | |
| ECR145C L Volvo | 110001-, | |
| EC220D L Volvo | 210001-210889,231001-,260001-260111,240001-,245001-,280001-,220001-221458,230001-230418,270001-, | |
| EC220D LR Volvo | 230001-230418,260001-260111,240001-,220001-221458,210001-210889,270001-,231001-,280001-,245001-, | |
| EC220D N Volvo | 231001-,270001-,260001-260111,280001-,230001-230418,240001-,245001-,210001-210889,220001-221458, | |
| EC220D NL Volvo | 270001-,220001-221458,230001-230418,231001-,260001-260111,245001-,210001-210889,240001-,280001-, | |
| EC220D Volvo | 245001-,240001-,231001-,210001-210889,220001-221458,280001-,230001-230418,270001-,260001-260111, | |
| EC140B LC Volvo | 10001-15000,20001-22000, | VOE14513634 |
| EC140B LCM Volvo | 10001-,20001-, | VOE14513634 |
| EC140B LC Volvo | 15001-,30001-30121,40001-40976, | |
| EC140B LCM Volvo | 15001-,30001-30121,40001-40976, | |
| EC300D LR Volvo | 270001-,210001-211176,230001-230373,280001-,260001-260064,231001-,250001-, | |
| EC300D L Volvo | 210001-211176,270001-,250001-,280001-,231001-,260001-260064,230001-230373, | |
| EC300D NL Volvo | 250001-,270001-,230001-230373,280001-,210001-211176,231001-,260001-260064, | |
| EC300D LD Volvo | 210001-211176,280001-,250001-,270001-,231001-,260001-260064,230001-230373, | |
| EC140B LC Volvo | 15001-,30001-30121,40001-40976, | VOE14513634 |
| EC140B LCM Volvo | 15001-,30001-30121,40001-40976, | VOE14513634 |
| EC290C L Volvo | 110001-111856, | |
| EC290C LD Volvo | 110001-111856, | |
| EC290C NL Volvo | 110001-111856, | |
| EC290C LR Volvo | 110001-111856, | |
| EC240C LR Volvo | 110001-111049,140001-140019,120001-120675, | |
| EC240C LD Volvo | 110001-111049,140001-140019,120001-120675, | |
| EC240C NL Volvo | 120001-120675,110001-111049,140001-140019, | |
| EC240C L Volvo | 120001-120675,140001-140019,110001-111049, | |
| EC210B LC Volvo | 70001-79999,50001-52370,35001-39999,40001-41093,90001-92051,81001-,95001-95057,80001-80188, | |
| EC210B NLC Volvo | 50001-52370,70001-79999,40001-41093,90001-92051,80001-80188,81001-,95001-95057,35001-39999, | |
| EC210B NC Volvo | 50001-52370,35001-39999,40001-41093,81001-,80001-80188,70001-79999,90001-92051,95001-95057, | |
| EC210B F Volvo | 50001-52370,80001-80188,90001-92051,35001-39999,40001-41093,81001-,70001-79999,95001-95057, | |
| EC210B Volvo | 50001-52370,80001-80188,35001-39999,40001-41093,81001-,90001-92051,95001-95057,70001-79999, | |
| EC210B LR Volvo | 50001-52370,81001-,40001-41093,90001-92051,35001-39999,80001-80188,70001-79999,95001-95057, | |
| ECR145D L Volvo | 210001-210766, | |
| EC250E L Volvo | 310001-314000,323001-,314001-,320001-323000, | |
| EC250E LR Volvo | 314001-,310001-314000,323001-,320001-323000, | |
| EC250E NL Volvo | 320001-323000,314001-,323001-,310001-314000, | |
| EC250E NLD Volvo | 314001-,323001-,320001-323000,310001-314000, | |
| EC250E LD Volvo | 323001-,314001-,310001-314000,320001-323000, | |
| EC220E Volvo | 323001-,320001-323000,314001-,310001-314000, | |
| EC220E Volvo | 310001-314000,314001-,320001-323000,323001-, | |
| EC220E Volvo | 314001-,323001-,310001-314000,320001-323000, | |
| EC220E Volvo | 314001-,310001-314000,320001-323000,323001-, | |
| EC220E Volvo | 310001-314000,314001-,323001-,320001-323000, | |
| EC250D L Volvo | 270001-,230001-230434,280001-,210001-210459,240001-,231001-,220001-220774,245001-,260001-260111, | |
| EC250D NL Volvo | 270001-,210001-210459,280001-,230001-230434,240001-,220001-220774,231001-,245001-,260001-260111, | |
| EC250D LR Volvo | 230001-230434,210001-210459,220001-220774,245001-,231001-,280001-,270001-,240001-,260001-260111, | |
| EC250D Volvo | 280001-,230001-230434,245001-,270001-,231001-,220001-220774,240001-,210001-210459,260001-260111, | |
| EC135B LC Volvo | 20001-99999, | |
| EC140 LC Volvo | 3001-9999, | SA1172-00980 |
| EC140 LCM Volvo | 3001-9999, | SA1172-00980 |
| EW130 Volvo | 3001-9999, | SA1172-00980 |
| EC210 Volvo | 3001-9999, | SA1172-00980 |
| EC210 LC Volvo | 3001-9999, | SA1172-00980 |
| EC210 F Volvo | 4525-9999, | SA1172-00980 |
| EC210 NLC Volvo | 3001-9999, | SA1172-00980 |
| EC210 LR Volvo | 3001-9999, | SA1172-00980 |
| EC290 Volvo | 3001-9999, | SA1172-00980 |
| EC290 LC Volvo | 3001-9999, | SA1172-00980 |
| EC290 NLC Volvo | 3001-9999, | SA1172-00980 |
| EC290 LR Volvo | 3001-9999, | SA1172-00980 |
| EC210C N Volvo | 110001-112052,120001-122073,140001-140246, | |
| EC210C LR Volvo | 120001-122073,140001-140246,110001-112052, | |
| EC210C LD Volvo | 140001-140246,110001-112052,120001-122073, | |
| EC210C NL Volvo | 140001-140246,110001-112052,120001-122073, | |
| EC210C L Volvo | 110001-112052,120001-122073,140001-140246, | |
| EC210B FX Volvo | 16199-20000, | VOE14513634 |
| EC210B LC Volvo | 30001-34952,20001-20837,23001-25067,10001-19999, | VOE14513634 |
| EC210B LR Volvo | 30001-34952,23001-25067,10001-19999,20001-20837, | VOE14513634 |
| EC210B NLC Volvo | 10001-19999,23001-25067,30001-34952,20001-20837, | VOE14513634 |
| EC210B F Volvo | 10457-29999, | VOE14513634 |
| EC210B NC Volvo | 23001-25067,30001-34952,10001-19999,20001-20837, | VOE14513634 |
| EC290B NLC Volvo | 30001-30289,10001-13561, | VOE14513634 |
| EC290B LR Volvo | 30001-30289,10001-13561, | VOE14513634 |
| EC290B LC Volvo | 10001-13561,30001-30289, | VOE14513634 |
| EC290B LC Volvo | 13562-17000,80001-85000,30290-35000, | VOE14513634 |
| EC290B NLC Volvo | 30290-35000,13562-17000,80001-85000, | VOE14513634 |
| EC290B LR Volvo | 30290-35000,13562-17000,80001-85000, | VOE14513634 |
| EC290B FX Volvo | 80520-85000, | VOE14513634 |
| EC240B LC Volvo | 10001-12640,30001-30258, | VOE14513634 |
| EC240B LR Volvo | 30001-30258,10001-12640, | VOE14513634 |
| EC240B NLC Volvo | 10001-12640,30001-30258, | VOE14513634 |
| EC240B FX Volvo | 80361-85000, | VOE14513634 |
| EC240B NLC Volvo | 30259-35000,12641-15000,80001-85000, | VOE14513634 |
| EC240B LC Volvo | 12641-15000,80001-85000,30259-35000, | VOE14513634 |
| EC240B LR Volvo | 80001-85000,30259-35000,12641-15000, | VOE14513634 |
| EC240B NLC Volvo | 40001-40237,35001-37526,15001-16436, | |
| EC240B LC Volvo | 40001-40237,15001-16436,35001-37526, | |
| EC240B LR Volvo | 35001-37526,15001-16436,40001-40237, | |
| EC290B LC Volvo | 85001-86284,17001-,35001-35895,50001-50154, | |
| EC290B LR Volvo | 85001-86284,17001-,35001-35895,50001-50154, | |
| EW140E Volvo | 314001-,310001-314000, | |
| EC240 LR Volvo | 3001-9999, | SA1172-00980 |
| EC240 LC Volvo | 3001-9999, | SA1172-00980 |
| EC240 NLC Volvo | 3001-9999, | SA1172-00980 |
| EC240 Volvo | 3001-9999, | SA1172-00980 |
| EC140E Volvo | 310001-314000,314001-, | |
| EC140E Volvo | 314001-,310001-314000, | |
| ECR145E Volvo | 314001-,310001-314000, | |
| ECR145C L Volvo | 110001-, |
BUSHING-VOE14547395 is a Volvo Construction Equipment spare part. This bushing is made from bronze and has a diameter of less than 200mm. It is specifically designed for mounting the articulation arm used in soil excavators. This bushing is applicable to a wide range of Volvo Construction Equipment models, including but not limited to the EC120D, EC140B, EC210B, and EC220D. For further information or assistance, please contact our support team.
Additional information
| Weight | 1 kg |
|---|
