VOE 14617015 – Non-return valve
Key Features
$684,04
Warranty Information
All VMP products include a standard 6-month warranty.
6 MONTHS
Product Description
Description

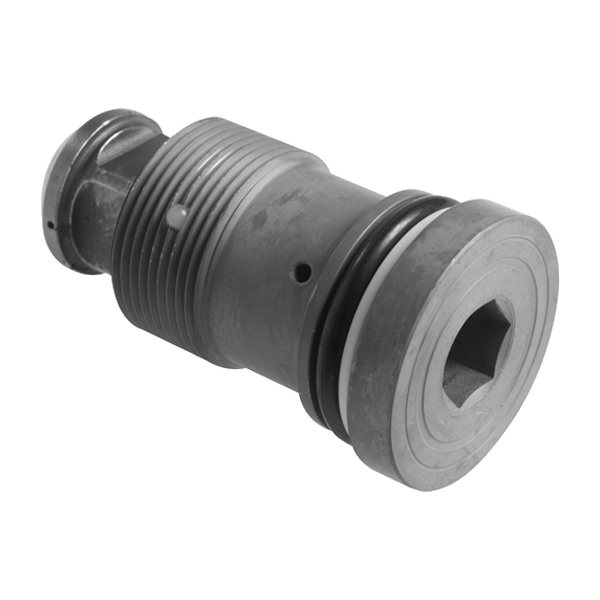

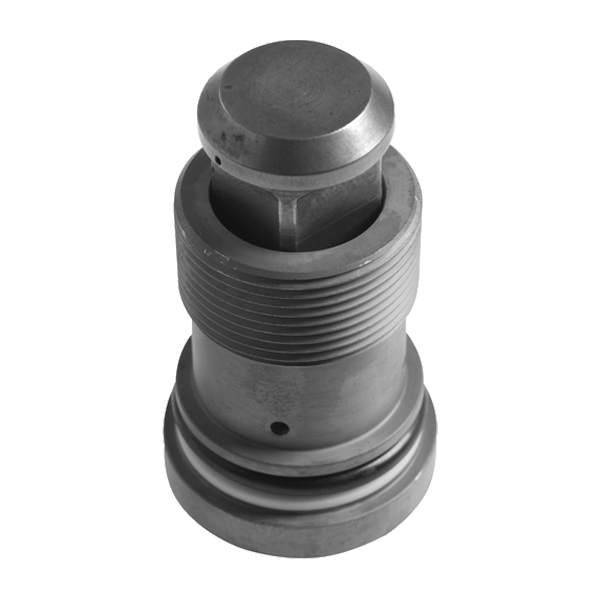

The VOE 14617015 Non-return valve is a Volvo construction equipment spare part. A non-return valve is a one-way check valve that permits fluid flow in a single direction and automatically closes to prevent reverse flow and load drift.
This part is categorized under Working Hydraulics, Serve Hydraulics applications. It is commonly installed on Volvo Excavators and Volvo Wheel Loaders to ensure reliable system performance and operational safety.
VOE 14617015 replaces previous part number VOE14609279. If your machine was originally equipped with VOE14609279, this is the updated replacement part.
| Model | SN | Old Part |
|---|---|---|
| EC210D Volvo | 280001-,250001-,230001-,240001-, | |
| EC210D Volvo | 230001-,280001-,250001-,240001-, | |
| EC210D Volvo | 230001-,250001-,280001-,240001-, | |
| EC210D Volvo | 280001-,250001-,230001-,240001-, | |
| EC210D Volvo | 230001-,280001-,250001-,240001-, | |
| EC210D Volvo | 230001-,250001-,280001-,240001-, | |
| EC240B NLC Volvo | 40001-40237,35001-37526,15001-16436, | VOE14609279 |
| EC240B LC Volvo | 40001-40237,15001-16436,35001-37526, | VOE14609279 |
| EC240B LR Volvo | 35001-37526,15001-16436,40001-40237, | VOE14609279 |
| EC200D Volvo | 280001-,240001-, | |
| EC200D Volvo | 280001-,240001-, | |
| EC200D Volvo | 230001-, | |
| EC200D Volvo | 230001-, | |
| FC2924C Volvo | 110001-110040, | VOE14609279 |
| EC240C LR Volvo | 110001-111049,140001-140019,120001-120675, | VOE14609279 |
| EC240C LD Volvo | 110001-111049,140001-140019,120001-120675, | VOE14609279 |
| EC240C NL Volvo | 120001-120675,110001-111049,140001-140019, | VOE14609279 |
| EC240C L Volvo | 120001-120675,140001-140019,110001-111049, | VOE14609279 |
| EC200B Volvo | 30001-, | VOE14609279 |
| EC210B FX Volvo | 16199-20000, | VOE14609279 |
| EC210B LC Volvo | 30001-34952,20001-20837,23001-25067,10001-19999, | VOE14609279 |
| EC210B LR Volvo | 30001-34952,23001-25067,10001-19999,20001-20837, | VOE14609279 |
| EC210B NLC Volvo | 10001-19999,23001-25067,30001-34952,20001-20837, | VOE14609279 |
| EC210B F Volvo | 10457-29999, | VOE14609279 |
| EC210B NC Volvo | 23001-25067,30001-34952,10001-19999,20001-20837, | VOE14609279 |
| EC200B Volvo | 30001-, | |
| EC210B LC Volvo | 70001-79999,50001-52370,35001-39999,40001-41093,90001-92051,81001-,95001-95057,80001-80188, | VOE14609279 |
| EC210B NLC Volvo | 50001-52370,70001-79999,40001-41093,90001-92051,80001-80188,81001-,95001-95057,35001-39999, | VOE14609279 |
| EC210B NC Volvo | 50001-52370,35001-39999,40001-41093,81001-,80001-80188,70001-79999,90001-92051,95001-95057, | VOE14609279 |
| EC210B F Volvo | 50001-52370,80001-80188,90001-92051,35001-39999,40001-41093,81001-,70001-79999,95001-95057, | VOE14609279 |
| EC210B Volvo | 50001-52370,80001-80188,35001-39999,40001-41093,81001-,90001-92051,95001-95057,70001-79999, | VOE14609279 |
| EC210B LR Volvo | 50001-52370,81001-,40001-41093,90001-92051,35001-39999,80001-80188,70001-79999,95001-95057, | VOE14609279 |
| EC240B FX Volvo | 80361-85000, | VOE14609279 |
| EC240B NLC Volvo | 30259-35000,12641-15000,80001-85000, | VOE14609279 |
| EC240B LC Volvo | 12641-15000,80001-85000,30259-35000, | VOE14609279 |
| EC240B LR Volvo | 80001-85000,30259-35000,12641-15000, | VOE14609279 |
Check valve.
Additional information
| Weight | 0,27 kg |
|---|
