Name: VOE 14716424 - Shim
Brand: Volvo CE
SKU: VMPG-191109
Price: 14.41 USD
Availability: InStock

The VOE 14716424 Shim is a Volvo construction equipment spare part. A shim is a thin precision-machined spacer used to adjust clearances, alignment and preload between bearings, gears, axle components and structural joints.

This part is categorized under Mechanical Equipment, Attachment and Unit, Digging applications. It is commonly installed on Volvo Compact Excavators and Volvo Excavators to ensure reliable system performance and operational safety.

Model	SN	Old Part
EC60D Volvo	230001-,
EC60D Volvo	230001-,
EC60D Volvo	230001-,
EC55D Volvo	230001-,
EC55D Volvo	230001-,
EC55D Volvo	230001-,
EC60E Volvo	314001-,
EC60E Volvo	314001-,
EC60E Volvo	314001-,
EC60E Volvo	314001-,
EC60E Volvo	314001-,
EW60E Volvo	314001-,
EW60E Volvo	314001-,
EW60E Volvo	314001-,
EW60E Volvo	314001-,
EW60E Volvo	314001-,
EC60E Volvo	314001-,
EC60E Volvo	314001-,
EW60E Volvo	314001-,
EC60E Volvo	314001-,
EW60E Volvo	314001-,
EW60E Volvo	314001-,
EW60E Volvo	314001-,
EC55D Volvo	230001-,
EW60C Volvo	110001-,
EC60E Volvo	310001-314000,
EW60E Volvo	310001-314000,

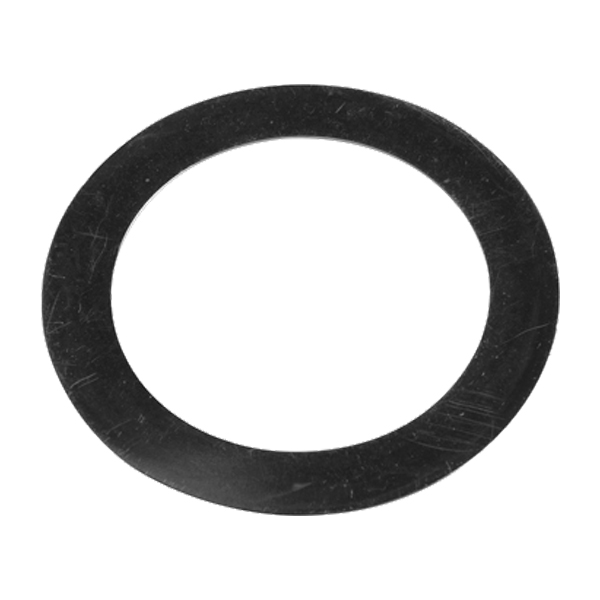

Adjustment shim – spacer ring in medium carbon steel manufactured by the quenching and tempering process with galvanized surface finish measuring ø47 mm x ø65 mm x 0.5 mm.
