VOE 984759 – Flange screw
Key Features
$8,63
Warranty Information
All VMP products include a standard 6-month warranty.
6 MONTHS
Product Description
Description
The VOE 984759 Flange screw is a Volvo construction equipment spare part. A flange screw is a bolt with an integrated washer flange that distributes clamping force and provides better vibration resistance.
This part is categorized under Hydraulic Brake System, Steering, Wheels, Tracks, Tyre, Hub, Drum, Engine Hood, Mudguard, Foot Step, Air Conditioning Unit and Working Hydraulics, Serve Hydraulics applications. It is commonly installed on Volvo Articulated Haulers, Volvo Compact Excavators, Volvo Excavators and Volvo Wheel Loaders to ensure reliable system performance and operational safety.
VOE 984759 replaces previous part numbers VOE13965188 and VOE60113103. If your machine was originally equipped with any of these part numbers, this is the updated replacement.
| Model | SN | Old Part |
|---|---|---|
| EC480D L Volvo | 260001-260044,280001-,270001-,210001-210514, | VOE13965188 |
| L180H HL Volvo | 10009-,1096-,2003-, | |
| L60H Volvo | 621002-,11005-, | |
| L60H Volvo | 621002-,11005-, | |
| L350H Volvo | 1005-,3003-, | |
| L350H Volvo | 1005-,3003-, | |
| EC380D L Volvo | 260001-260037,270001-,230001-230821,210001-210684,280001-,231001-, | VOE13965188 |
| EC380D NL Volvo | 210001-210684,230001-230821,280001-,270001-,260001-260037,231001-, | VOE13965188 |
| EC380D LR Volvo | 260001-260037,280001-,210001-210684,231001-,270001-,230001-230821, | VOE13965188 |
| L110H Volvo | 11491-,631418-, | |
| L120H Volvo | 15722-15722,15841-,632321-, | |
| L110H Volvo | 10005-11490,631001-631417, | |
| L120H Volvo | 14008-15721,15723-15840,632001-632320, | |
| L150H Volvo | 9185-,14267-,5920-,5824-5824,18001-, | |
| L180H Volvo | 4496-,8068-,13099-,15001-, | |
| L220H Volvo | 2691-,12104-,7272-,2735-,5001-, | |
| L350H Volvo | 1005-,3003-, | |
| L350H Volvo | 1005-,3003-, | |
| L120H Volvo | 15722-15722,15841-,632321-, | |
| L110H Volvo | 11491-,631418-, | |
| L350H Volvo | 1005-,3003-, | |
| A60H Volvo | 340001-,320001-,350001-, | VOE60113103 |
| L350H Volvo | 1005-,3003-, | VOE60113103 |
| L260H Volvo | 1004-,4001-, | |
| L260H Volvo | 1004-,4001-, | |
| L220H Volvo | 2691-,12104-,7272-,2735-,5001-, | |
| L220H Volvo | 2691-,12104-,7272-,2735-,5001-, | |
| L110H Volvo | 11491-,631418-, | VOE60113103 |
| L70H Volvo | 622002-,12006-, | |
| L90H Volvo | 13011-,623002-, | |
| L70H Volvo | 622002-,12006-, | |
| L350H Volvo | 1005-,3003-, | |
| L350H Volvo | 1005-,3003-, | |
| L90H Volvo | 13011-,623002-, | |
| L120H Volvo | 15722-15722,15841-,632321-, | VOE60113103 |
| ECR355E L Volvo | 314001-,310001-314000, | |
| ECR355E Volvo | 314001-,310001-314000, | |
| L110H Volvo | 10005-11490,631001-631417, | |
| L120H Volvo | 14008-15721,15723-15840,632001-632320, | |
| L110H Volvo | 11491-,631418-, | |
| L120H Volvo | 15722-15722,15841-,632321-, | |
| EW60E Volvo | 314001-, |

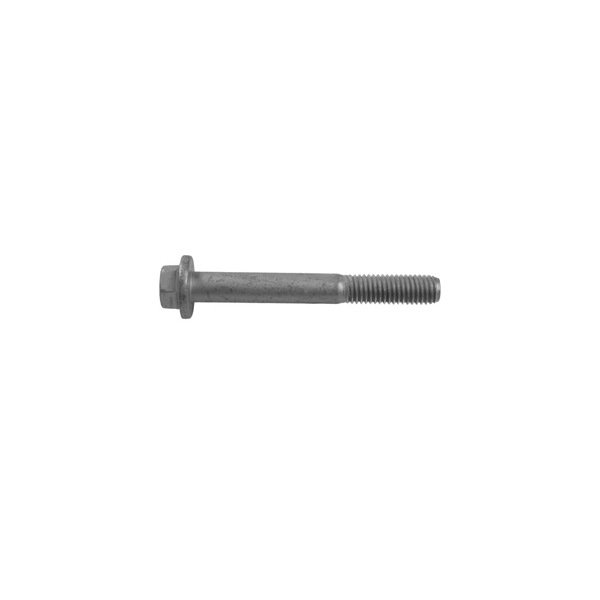

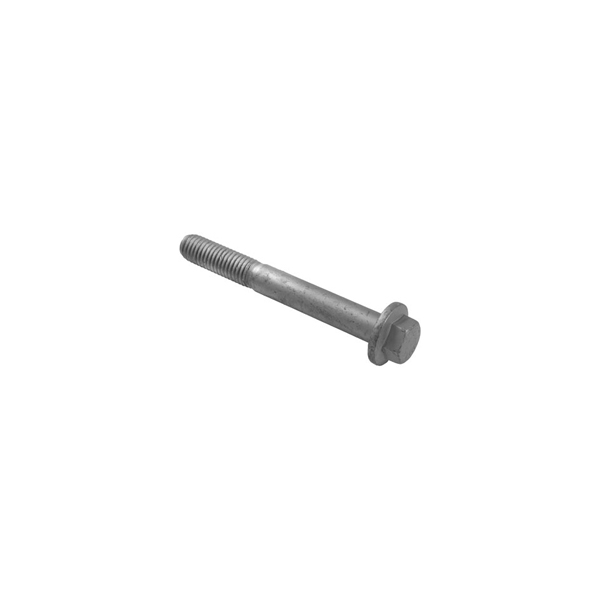

FLANGE SCREW-VOE984759 is a Volvo Construction Equipment part with an M10 thread and a length of 80mm. The material used in its construction is steel, specifically of property class 10.9. This hex flange screw has undergone a surface treatment, identified as Y 1000-4, which gives it a silver color. The overall dimensions of the screw hex flange, including the length, adhere to the standard specifications set by Volvo, ensuring compatibility and performance with the designated machine models.
