SHIPS IN 24HIN STOCK
Delivery Options
Worldwide delivery — estimated arrival in 1 business day.

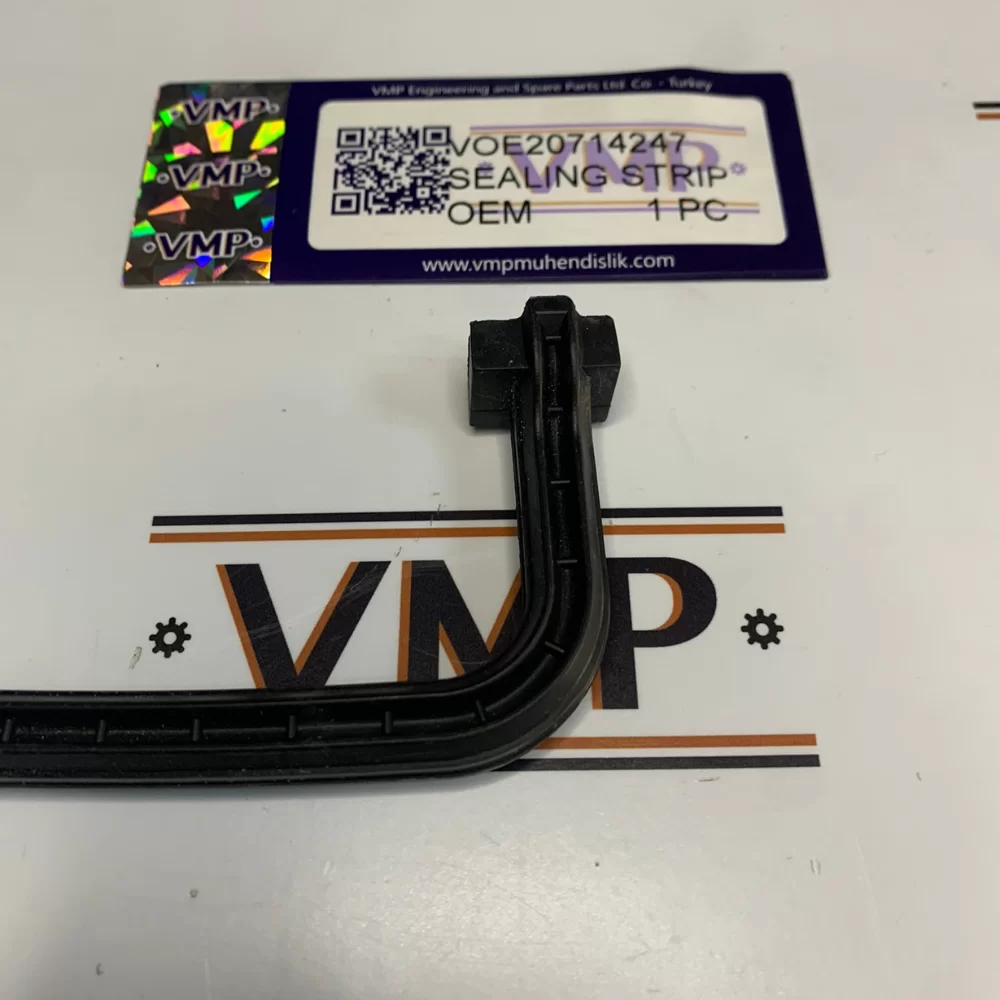

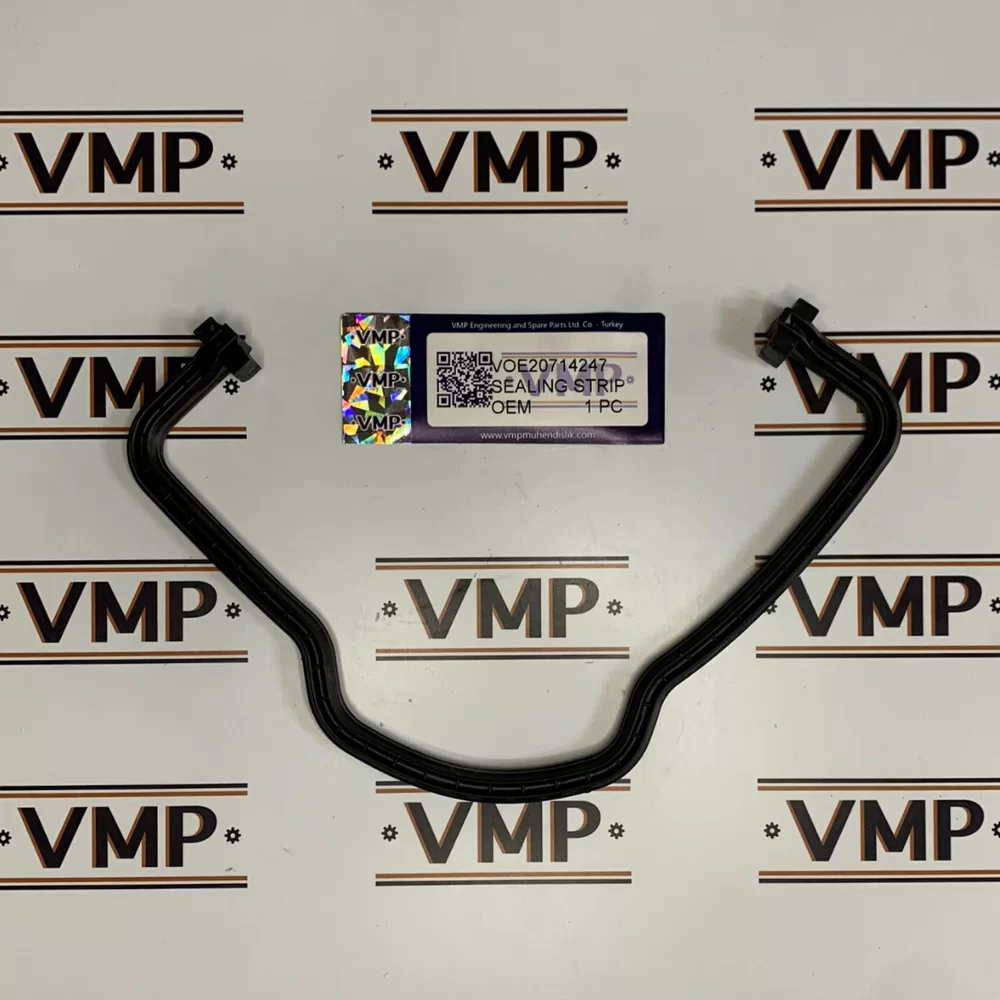

VOE 20714247 – Sealing Strip OEM
Key Features
$18,60
Warranty Information
All VMP products include a standard 6-month warranty.
6 MONTHS
Product Description
Description
The VOE 20714247 Sealing Strip OEM is a Volvo construction equipment spare part. A seal is a precision element that prevents the passage of fluid or contaminants between mating surfaces in hydraulic, engine and transmission assemblies.
This part is categorized under Engine applications. It is commonly installed on Volvo Articulated Haulers, Volvo Excavators, Volvo Pipelayers and Volvo Wheel Loaders to ensure reliable system performance and operational safety.
VOE 20714247 replaces previous part numbers VOE8170452 and VOE20526706. If your machine was originally equipped with any of these part numbers, this is the updated replacement.
| Model | SN | Old Part |
|---|---|---|
| EC460B LC Volvo | 15001-18400,85001-85201, | |
| EC460B LR Volvo | 15001-18400,85001-85201, | |
| EC360B NLC Volvo | 85001-85181,15001-17660,35001-37598, | |
| EC360B LR Volvo | 15001-17660,35001-37598,85001-85181, | |
| EC360B LC Volvo | 35001-37598,85001-85181,15001-17660, | |
| EC330B LC Volvo | 15001-15582, | |
| EC360C LD Volvo | 115001-115551,110001-110575,140001-140084, | |
| EC360C NL Volvo | 140001-140084,115001-115551,110001-110575, | |
| EC360C L Volvo | 115001-115551,140001-140084,110001-110575, | |
| L220E Volvo | 4003-5020, | |
| EC330B LC Volvo | 10713-10806,80001-80425, | |
| L220E Volvo | 2005-3566, | |
| A35E FS Volvo | 10001-11215, | |
| A35E Volvo | 10001-11240, | |
| EC460B LR Volvo | 80001-85000,11515-15000, | |
| EC460B LC Volvo | 80001-85000,11515-15000, | |
| A35D Volvo | 11001-14106,71001-72711,61001-61303, | |
| EC330B LC Volvo | 10001-10712, | |
| L180E Volvo | 8001-9999, | |
| L150E Volvo | 10002-63000, | |
| L220F Volvo | 6005-8485, | |
| L180F Volvo | 11004-15577, | |
| L180F HL Volvo | 11004-15577, | |
| L150F Volvo | 13003-17724, | |
| A35D Volvo | 11001-14106,71001-72711,61001-61303, | |
| EC360B NLC Volvo | 10001-12151, | |
| EC360B LR Volvo | 10001-12151, | |
| EC360B LC Volvo | 10001-12151, | |
| A40D Volvo | 70001-70374,60001-60286,10001-14283, | |
| PL4608 Volvo | 110001-110086, | |
| PL4611 Volvo | 110001-110071, | |
| EC460C L Volvo | 110001-110506, | |
| EC330C L Volvo | 110001-110158,140001-140055, | |
| EC330C LD Volvo | 110001-,140001-, | |
| EC360B NLC Volvo | 10001-12151, | VOE8170452 |
| EC360B LR Volvo | 10001-12151, | VOE8170452 |
| EC360B LC Volvo | 10001-12151, | VOE8170452 |
| EC330B LC Volvo | 10001-10712, | VOE8170452 |
| EC460C L Volvo | 110001-110506, | VOE8170452 |
| EC360C L Volvo | 110001-115000,140001-145000, | VOE8170452 |
| EC360C NL Volvo | 110001-,140001-, | VOE8170452 |
| L180E HL Volvo | 8001-9407, | |
| A35D Volvo | 11001-14106,71001-72711,61001-61303, | VOE8170452 |
| PL4611 Volvo | 110001-110071, | VOE8170452 |
| EC460B LR Volvo | 10001-11514, | VOE8170452 |
| EC460B LC Volvo | 10001-11514, | VOE8170452 |
| EC360B LC Volvo | 12152-15000,30001-35000,80001-85000, | VOE8170452 |
| EC360B LR Volvo | 30001-35000,12152-15000,80001-85000, | VOE8170452 |
| EC360B NLC Volvo | 30001-35000,12152-15000,80001-85000, | VOE8170452 |
| EC330B LC Volvo | 10713-10806,80001-80425, | VOE8170452 |
| L180F Volvo | 11004-15577, | |
| L150F Volvo | 13003-17724, | |
| EC330C L Volvo | 110001-110158,140001-140055, | VOE8170452 |
| EC330C LD Volvo | 110001-,140001-, | VOE8170452 |
| L220F Volvo | 6005-8485, | |
| L180F HL Volvo | 11004-15577, | |
| L150F Volvo | 13003-17724, | |
| L180F Volvo | 11004-15577, | |
| EC460B LR Volvo | 80001-85000,11515-15000, | VOE8170452 |
| EC460B LC Volvo | 80001-85000,11515-15000, | VOE8170452 |
| A40D Volvo | 70001-70374,60001-60286,10001-14283, | VOE8170452 |
| L220F Volvo | 6005-8485, | |
| L180F HL Volvo | 11004-15577, | |
| L180E Volvo | 8001-9999, | |
| EC360B LC Volvo | 12152-15000,30001-35000,80001-85000, | |
| EC360B LR Volvo | 30001-35000,12152-15000,80001-85000, | |
| EC360B NLC Volvo | 30001-35000,12152-15000,80001-85000, | |
| EC460B LR Volvo | 80001-85000,11515-15000, | |
| EC460B LC Volvo | 80001-85000,11515-15000, | |
| EC460B LR Volvo | 80001-85000,11515-15000, | |
| EC460B LC Volvo | 80001-85000,11515-15000, | |
| L150E Volvo | 10002-63000, | |
| EC330B LC Volvo | 10713-10806,80001-80425, | |
| T450D Volvo | 17001-99999, | |
| L220E Volvo | 4003-5020, | |
| L180E HL Volvo | 8001-9407, | |
| EC360C L Volvo | 110001-115000,140001-145000, | |
| EC360C NL Volvo | 110001-,140001-, | |
| L150F Volvo | 13003-17724, | |
| EC360C HR Volvo | 190001-190016, | |
| A35E FS Volvo | 10001-11215, | |
| PL4611 Volvo | 110001-110071, | |
| EC360C L Volvo | 110001-115000,140001-145000, | |
| EC360C NL Volvo | 110001-,140001-, | |
| L180F Volvo | 11004-15577, | |
| EC460C L Volvo | 110001-110506, | |
| PL4611 Volvo | 110001-110071, | |
| EC330C L Volvo | 110001-110158,140001-140055, | |
| EC330C LD Volvo | 110001-,140001-, | |
| A35E Volvo | 10001-11240, | |
| L220F Volvo | 6005-8485, | |
| L180F HL Volvo | 11004-15577, | |
| EC460C L Volvo | 110001-110506, | |
| EC330B LC Volvo | 10001-10712, | VOE20526706 |
| EC360B NLC Volvo | 10001-12151, | VOE20526706 |
| EC360B LR Volvo | 10001-12151, | VOE20526706 |
| EC360B LC Volvo | 10001-12151, | VOE20526706 |
| EC460B LR Volvo | 10001-11514, | VOE8170452 |
| EC460B LC Volvo | 10001-11514, | VOE8170452 |
| EC330C L Volvo | 110001-110158,140001-140055, | |
| EC330C LD Volvo | 110001-,140001-, | |
| EC330B LC Volvo | 10713-10806,80001-80425, | |
| EC360B LC Volvo | 12152-15000,30001-35000,80001-85000, | |
| EC360B LR Volvo | 30001-35000,12152-15000,80001-85000, | |
| EC360B NLC Volvo | 30001-35000,12152-15000,80001-85000, | |
| EC460C LD Volvo | 115001-115434, | |
| EC460C L Volvo | 115001-115434, | |
| EC460C HR Volvo | 190001-190022, | |
| EC360B NLC Volvo | 85001-85181,15001-17660,35001-37598, | |
| EC360B LR Volvo | 15001-17660,35001-37598,85001-85181, | |
| EC360B LC Volvo | 35001-37598,85001-85181,15001-17660, | |
| EC330B LC Volvo | 15001-15582, | |
| PL4608 Volvo | 110001-110086, | |
| L180E Volvo | 62501-62543,5001-7398, | VOE8170452 |
| L220E Volvo | 2005-3566, | VOE8170452 |
| A40D Volvo | 70001-70374,60001-60286,10001-14283, | VOE8170452 |
| L180E HL Volvo | 5086-8000, | VOE8170452 |
| L220E Volvo | 2005-3566, | VOE20526706 |
| EC360C LD Volvo | 115001-115551,110001-110575,140001-140084, | |
| EC360C NL Volvo | 140001-140084,115001-115551,110001-110575, | |
| EC360C L Volvo | 115001-115551,140001-140084,110001-110575, | |
| EC460B LC Volvo | 15001-18400,85001-85201, | |
| EC460B LR Volvo | 15001-18400,85001-85201, | |
| A35D Volvo | 11001-14106,71001-72711,61001-61303, | VOE8170452 |
| EC460C LD Volvo | 115001-115434, | VOE20526706 |
| EC460C L Volvo | 115001-115434, | VOE20526706 |
| EC460C HR Volvo | 190001-190022, | |
| PL4608 Volvo | 110001-110086, | |
| EC360C HR Volvo | 190001-190016, | |
| EC460C HR Volvo | 190001-190022, | VOE20526706 |
| EC360C HR Volvo | 190001-190016, | VOE20526706 |
| EC460C LD Volvo | 115001-115434, | |
| EC460C L Volvo | 115001-115434, | |
| PL4608 Volvo | 110001-110086, | VOE20526706 |
Additional information
| Weight | 0,049 kg |
|---|---|
| Brands |
OEM |
